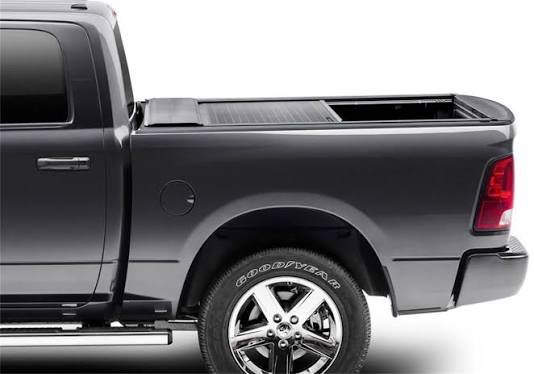

BAK Retractable Tonneau Cover
Our BAK retractable tonneau cover combines aluminum construction with a canister-based retraction system that lets you open or close the bed in seconds. The cover rolls into a compact housing mounted at the front of the bed, giving you instant access to the full cargo area without removing panels or fighting with clamps.
We built this cover for drivers who haul bikes, lumber, and gear that won't fit under a rigid lid. The rails sit flush with the bed walls, the drain channels route water away from seams, and the locking mechanism keeps cargo secure when you're parked.
Quick specs
Aluminum Construction & Weather Seal
Each slat uses powder-coated aluminum that handles sun, salt, and temperature swings without warping. The finish is the same formula we apply to our folding models, so you get years of color retention even in desert heat.
The rails mount directly to the bed walls with clamps that distribute load across multiple contact points. When the cover is closed, the slats lock together along their edges and press down against a perimeter seal. Water hits the slats, runs into the side channels, and exits through drain tubes near the cab — your cargo stays dry through highway rain and car washes.
Canister Retraction System
The canister sits 12 inches behind the cab and houses the rolled-up cover when open. You unlock the tailgate latch, pull the strap, and the cover retracts on spring tension — no crank handle, no manual winding. The slats coil inside the canister on a center spindle that self-levels as the cover rolls.
Full retraction takes about eight seconds and leaves the entire bed floor clear. You can stop the cover at any point along the bed if you only need partial access. The automatic tensioner inside the canister adjusts spring pressure so the cover never sags or binds, even after a year of daily use.
Installation & Bed Compatibility
Installation requires a socket wrench and about an hour. The rails clamp onto the bed walls using adjustable brackets that fit beds from 5.5 to 8 feet. You mount the canister first, then attach the side rails and connect the cover to the spindle.
The cover works with most spray-in and drop-in bed liners as long as the liner doesn’t extend above the bed rails. If you have a bed liner with tall side panels, you may need spacer shims to level the rail clamps. The system is also compatible with fifth-wheel hitches and gooseneck mounts — the canister sits forward of the hitch pocket and doesn’t interfere with towing hardware.
More Retractable & Roll-Up Solutions
Rated 4.8 by verified buyers
BAK Retractable Tonneau Cover Questions
No, the tailgate must be unlocked and lowered before you can retract the cover. The locking mechanism engages the tailgate latch, so raising the gate without first releasing the cover can damage the latch assembly.
Once the tailgate is down, you pull the release strap and the cover retracts on spring tension. You can stop it at any point along the bed or let it roll all the way into the canister.
The canister measures 12 inches front to back and sits directly behind the cab. When the cover is fully retracted, you lose about one foot of bed length but retain full bed width and height.
Most users don't notice the space loss because the canister sits high enough that you can still slide flat cargo underneath it. Tall items like appliances or stacked boxes fit without hitting the housing.
Yes, the BAK retractable tonneau cover is compatible with most spray-in and drop-in bed liners as long as the liner surface sits flush with or below the bed rail tops. The clamps mount to the bed walls, not the liner itself.
If your liner has raised side panels that extend above the rails, you may need spacer shims to level the mounting brackets. These shims are included with the cover and take a few minutes to install.
Yes, the cover locks automatically when you close it all the way and engage the tailgate latch. The latch mechanism secures both the tailgate and the rear edge of the cover, so you can't open either one without the key.
You can also lock the cover in any partially open position by engaging the tailgate latch. This lets you secure tall cargo while still protecting the rest of the bed.
Yes, the closed cover supports most universal crossbar systems and roof racks. The aluminum slats are rated to carry kayaks, bikes, cargo boxes, and similar loads as long as the total weight stays under 200 pounds.
Most rack systems clamp onto the side rails without drilling into the slats. Check your rack manufacturer's specifications to confirm compatibility with flush-mount tonneau rails.
We recommend flushing the drain tubes every six months to clear leaves, dirt, and pollen. You can do this with a garden hose or compressed air — just remove the drain tube caps at the front corners of the bed and run water through the channels.
If you park under trees or drive on dusty roads frequently, clean the drains quarterly. Clogged drains won't damage the cover, but water may pool on top instead of draining cleanly.
The canister includes an automatic tension adjuster that compensates for spring wear, but if you notice sagging or slow retraction after extended use, you can reset the tension manually. The adjustment port is on the end of the canister and requires a hex key.
Turn the adjuster clockwise in quarter-turn increments until the cover retracts smoothly again. Most users never need to adjust tension, but the option is there if the cover sees heavy daily use.
