BAKFlip G2 Tonneau Cover for Ford F-250 Super Duty
Our BAKFlip G2 was engineered for heavy-duty pickups like the Ford F-250 Super Duty, delivering the aluminum panel strength contractors and fleet operators demand. The tri-fold design opens in seconds from either side of your bed, giving you instant access to cargo while maintaining a sleek profile that preserves fuel economy.
We built the G2 with extruded aluminum slats reinforced by a dual-action hinge system — every panel locks independently, so you can fold one, two, or all three sections depending on the load you’re hauling. The EPDM rubber seals run the full perimeter, keeping moisture and road dust out even during highway drives and pressure-washing sessions. This is the bakflip bed cover F250 owners trust when they need bed access without sacrificing security.
Construction & fold design details
Aluminum Panel Construction & Weight Capacity
We extrude every G2 panel from 6000-series aluminum alloy, the same grade used in structural applications where flex and fatigue resistance matter. Each slat measures approximately one inch thick, with internal ribbing that prevents warping under load. The powder-coat finish we apply isn’t just cosmetic — it forms a barrier against oxidation in wet climates and resists scratching when you slide toolboxes or equipment across the closed cover.
The three-panel system distributes weight across multiple hinge points, so you can safely walk on the closed cover to access roof racks or perform truck bed tasks. We rate the G2 at 300 pounds evenly distributed, which covers most real-world scenarios like stacking sandbags, strapping down ladders, or leaning against the cover while you work. The aluminum won’t dent like a vinyl roll-up when you accidentally drop a wrench.
Tri-Fold Operation & Bed Access Modes
The G2 unfolds in three distinct positions depending on how much bed space you need. Flip the rear panel forward and you’ve got access to the tailgate area for smaller cargo runs. Fold both rear panels and you can slide longer items — drywall sheets, PVC pipe, dimensional lumber — into the bed while still covering the front third near the cab.
Complete Open Position
When you need the entire bed, all three panels fold flat against the rear cab window, resting at a slight angle that keeps them clear of your rear sliding glass. The panels lock into this position with integrated prop arms, so they won’t slam down unexpectedly when you’re loading plywood or pulling out a motorcycle ramp. You regain every inch of bed depth and width — the same clearance you’d have with no cover installed. Similar engineering principles found in the BAKFlip G2 series across different truck platforms ensure every hinge and latch operates with identical reliability.
Installation & Mounting Rail System
We designed the clamp-on rail system to work with your F-250’s factory bed stake pockets, so you won’t drill holes or void any warranties. The side rails slide into position along each bed rail, and the provided clamps tighten into the stake holes with a standard socket wrench. The entire installation takes about 30 minutes with basic hand tools — no measuring, no cutting, no specialty fasteners.
Once the rails are seated, the aluminum panels drop into place and self-align thanks to the keyed hinge channels. You’ll adjust the front panel’s leading edge so it sits flush with the bulkhead, then tighten the set screws that hold tension in the hinge system. The rear latch bracket mounts to your tailgate using existing bolt holes, creating a secure anchor point when the cover is locked closed. If you ever need to remove the entire cover for a major haul, the quick-release levers let you lift all three panels off the rails in under two minutes.
Upgrade Options & Compatible BAKFlip Models
Rated 4.8 by verified buyers
Common Questions About the BAKFlip G2 for F-250
Yes, the G2 rail system accommodates most spray-in and drop-in bed liners up to a half-inch thick. The side rails feature adjustable clamps that tighten into your truck’s factory stake pockets, so added liner thickness won’t prevent installation. If you have an over-rail liner that extends above the bed sides, you may need spacer shims, which we can provide separately.
We do not recommend driving with any panels in the partially folded position. The hinges and prop arms are designed for stationary use when loading or unloading cargo. Wind forces at highway speeds can stress the hinge pins and potentially damage the locking mechanism. Always secure all panels in either the fully closed or fully open-against-cab position before driving.
The three aluminum panels and rail system together weigh approximately 60 to 65 pounds, depending on your specific truck bed length. This makes the G2 light enough for one person to install or remove, yet heavy enough to resist lifting in high winds when properly latched. The distributed weight across three panels also makes handling each section easier than wrestling a single solid panel.

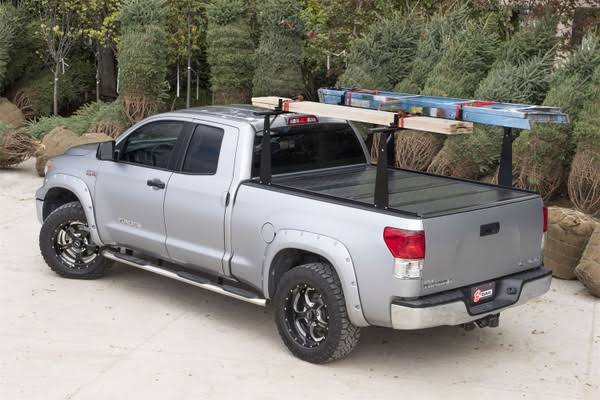

The standard G2 does not accommodate bed-mounted fifth-wheel rails or gooseneck ball installations. The front panel must rest flush against the truck’s bulkhead, which conflicts with most hitch hardware. If you regularly tow with a bed-mounted hitch, consider our CS model with a fold-and-slide design that allows the entire cover to move forward and expose the hitch area.
Both use tri-fold aluminum construction, but the MX4 features a matte finish with enhanced UV inhibitors and a slightly lower profile when closed. The G2 uses a traditional powder-coat finish and slightly thicker hinge assemblies. The MX4 also includes pre-wired channels for LED light strips if you want to add bed lighting. For most F-250 work truck applications, the G2 delivers identical weather protection and durability at a lower price point.
The automatic latches engage when you close the panels, securing the cover to the bed rails. For added security, the rear panel includes a keyed latch that locks to your tailgate, preventing someone from simply flipping the cover open. The latch uses a standard tubular key, and we include two keys with every cover. While the entire assembly can be removed if someone unbolts the rails, the locked configuration deters casual theft and keeps opportunistic hands out of your bed.
Wash the cover with automotive soap and water using a soft sponge or microfiber cloth — avoid abrasive brushes that can scratch the powder coat. Rinse thoroughly and dry with a towel to prevent water spots. For stubborn dirt or tree sap, use a mild all-purpose cleaner diluted per the label instructions. We recommend applying a spray wax or sealant every few months to protect the finish from UV exposure. Inspect the EPDM seals annually and wipe them with a silicone-based protectant to keep the rubber pliable.
